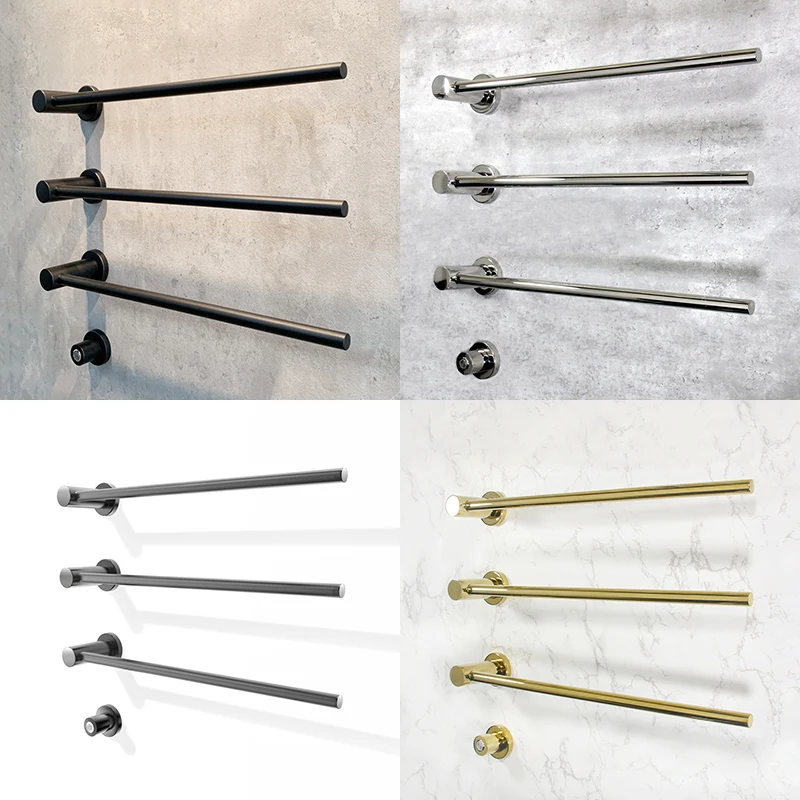

Optional Size:

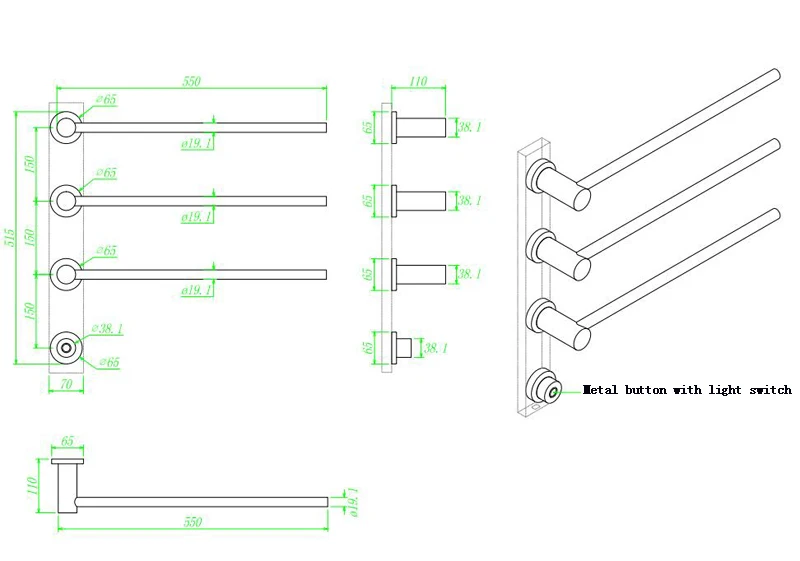

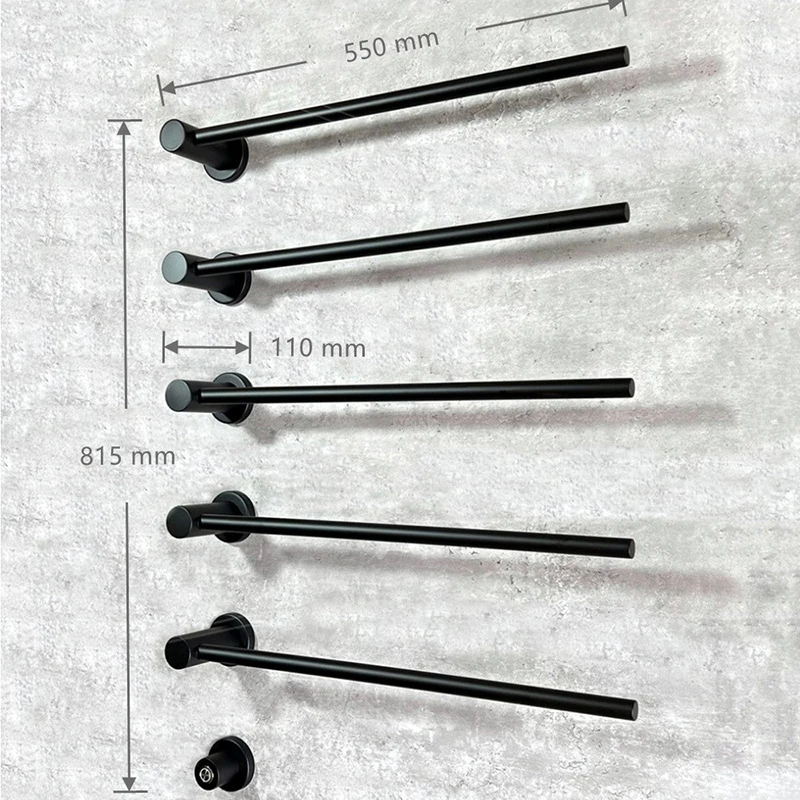

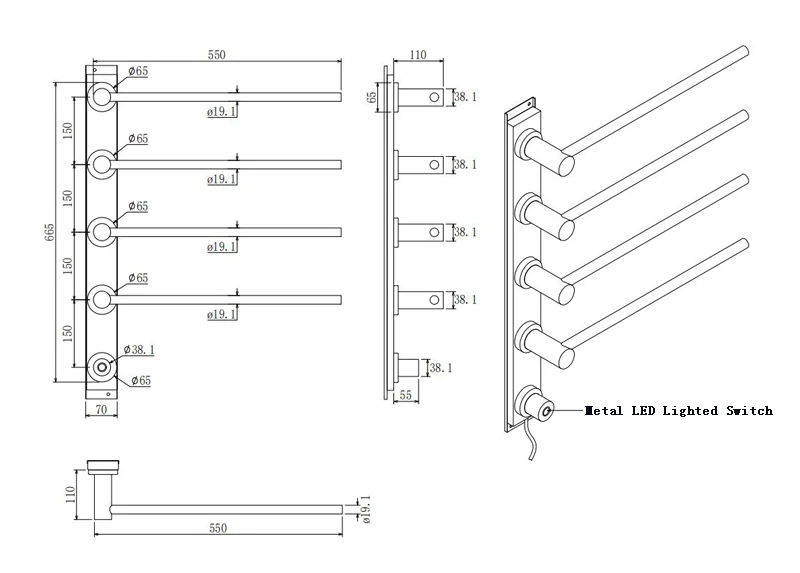

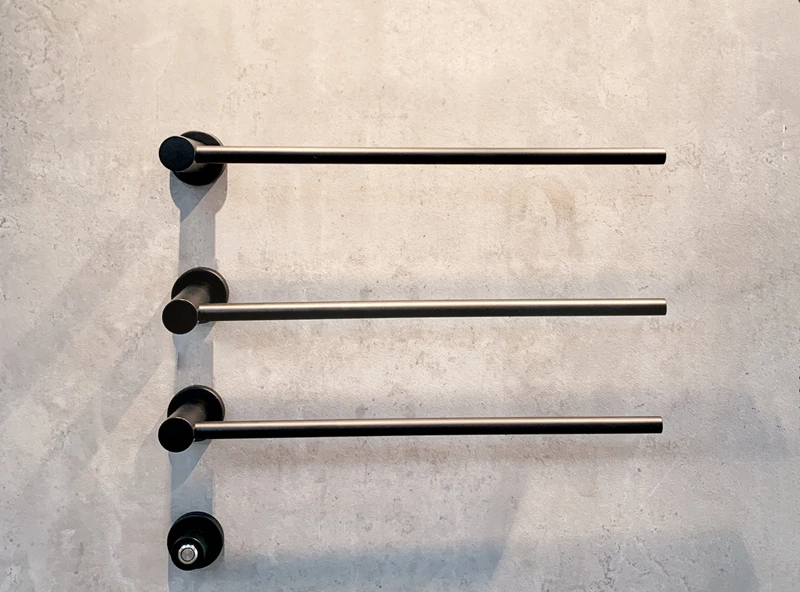

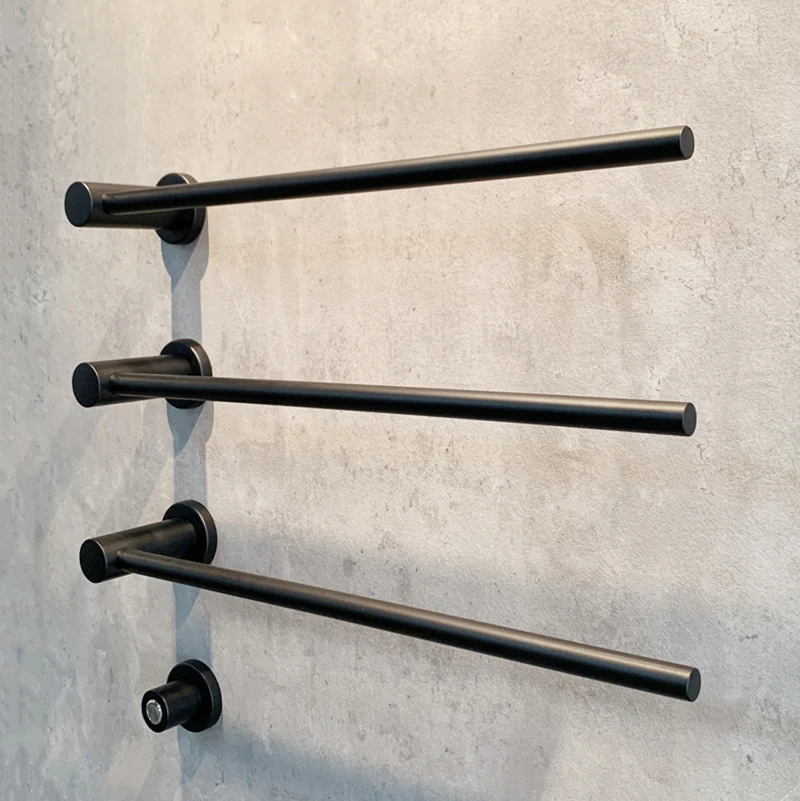

3 poles ：Width 550* Height 515*110mm(220V-50Hz/24W)

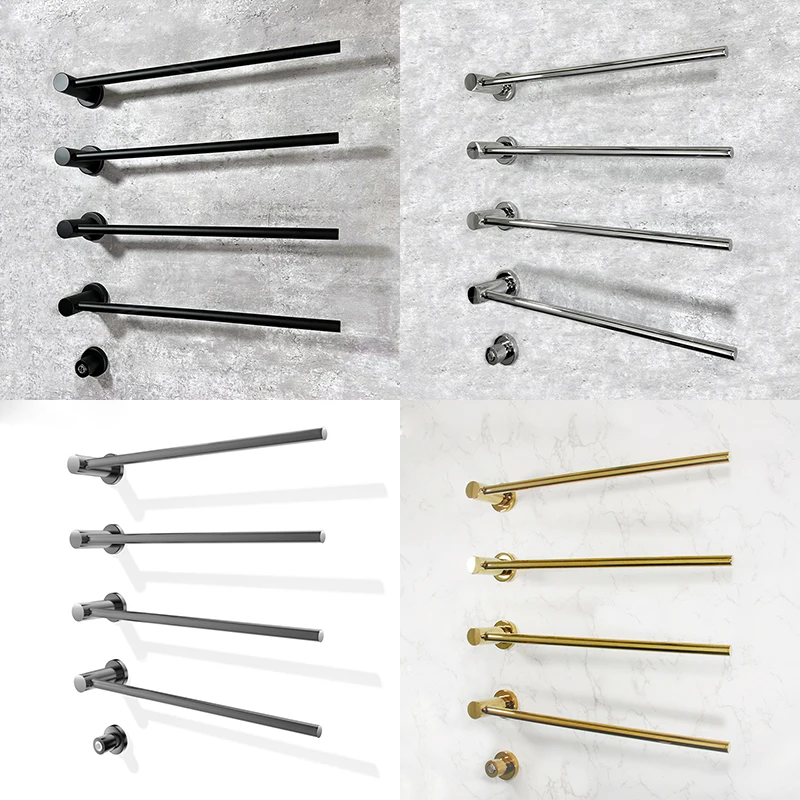

4 poles：Width 550* Height 665*110mm(220V-50Hz/32W)

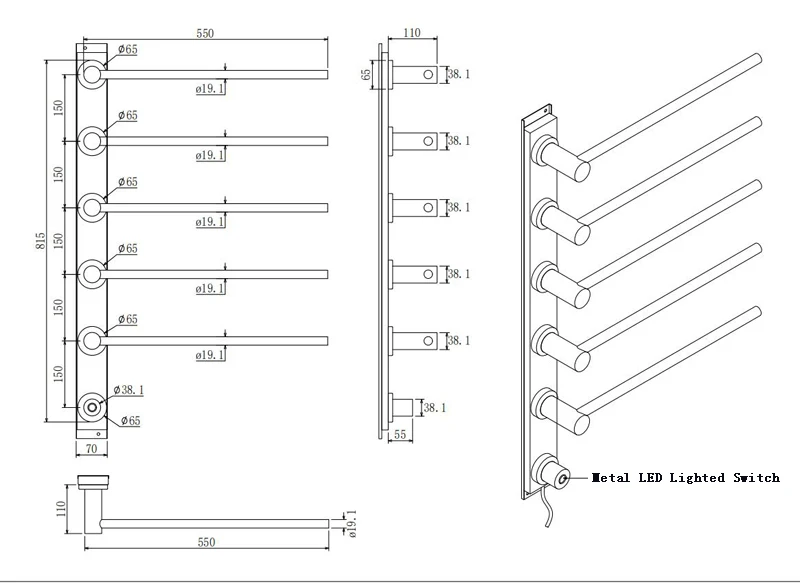

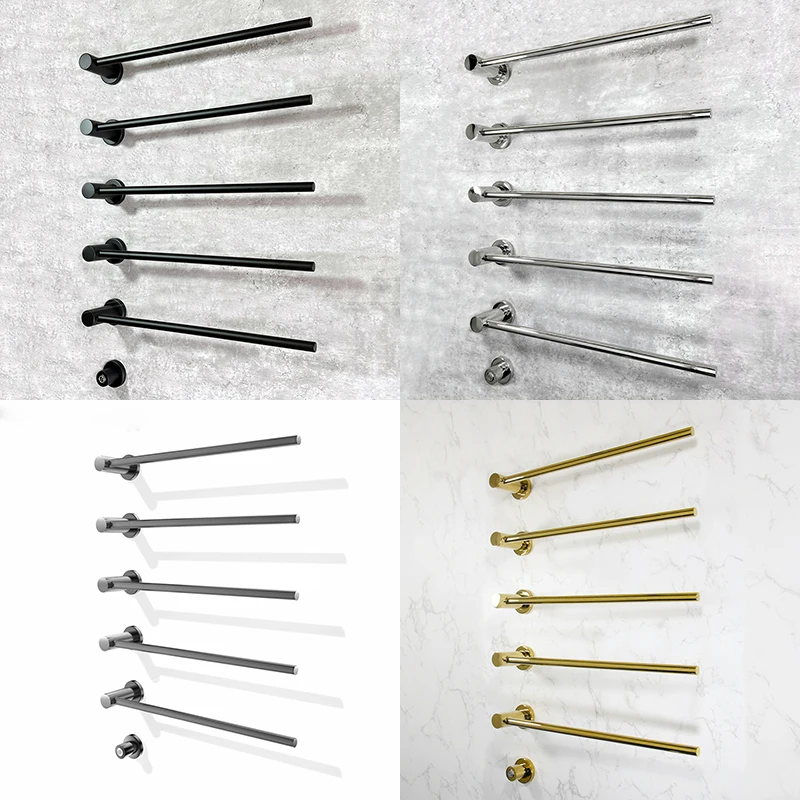

5 poles：Width 550* Height 815*110mm(220V-50Hz/40W)

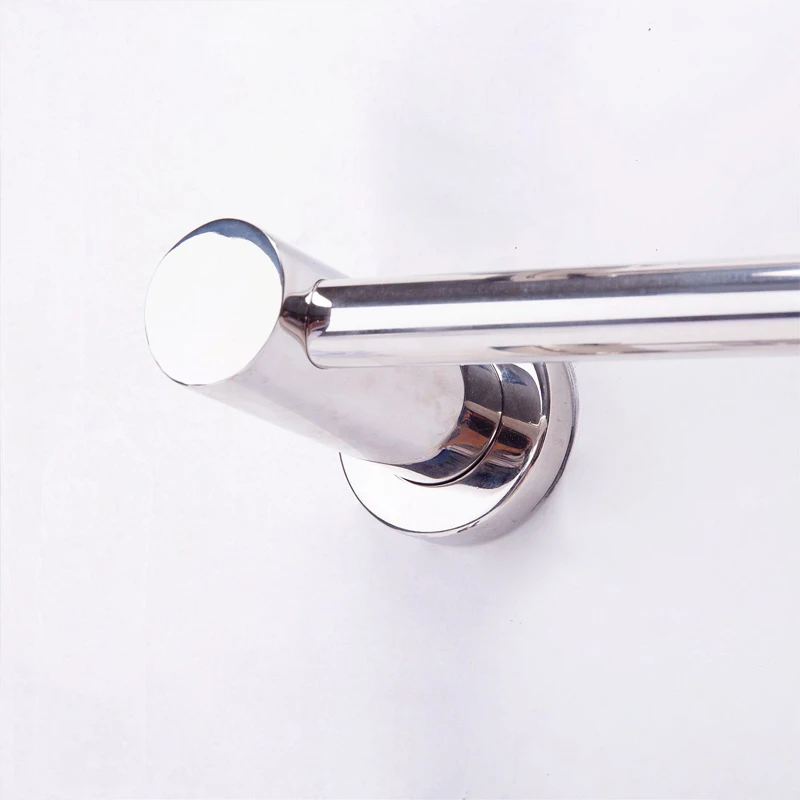

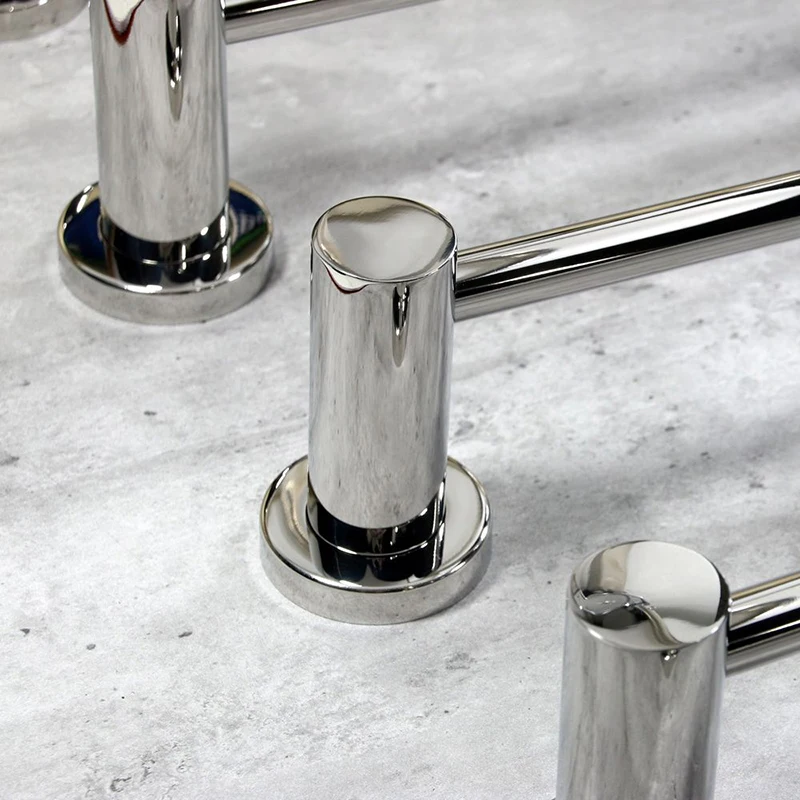

Material: 304 stainless steel
Main Certifications: CQC, UL, CE, SAA
Temperature: constant temperature 50-55°C
Waterproof grade: IP34, double-layer isolation
Installation method: in-wall installation

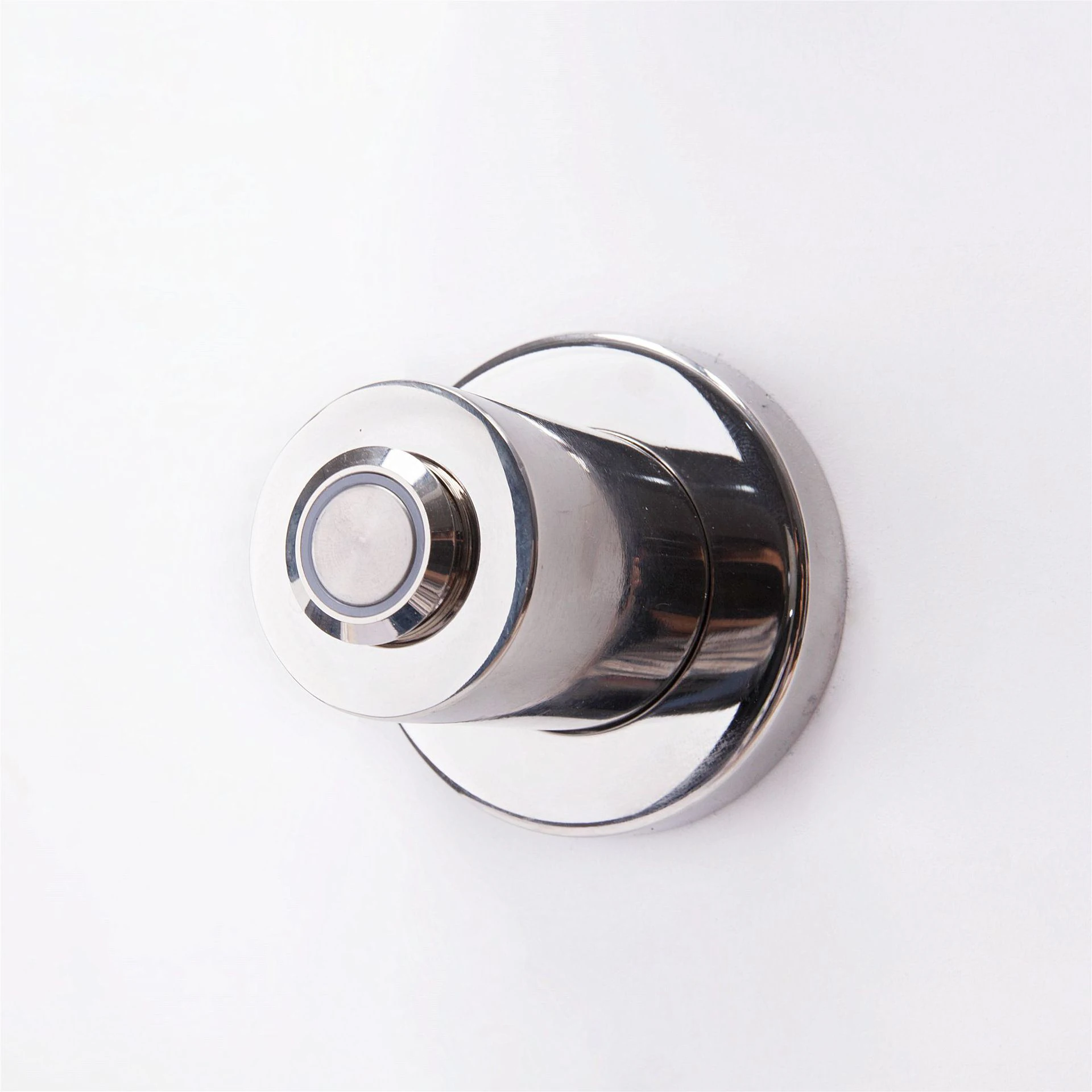

Note: The leakage protection switch must be connected to use

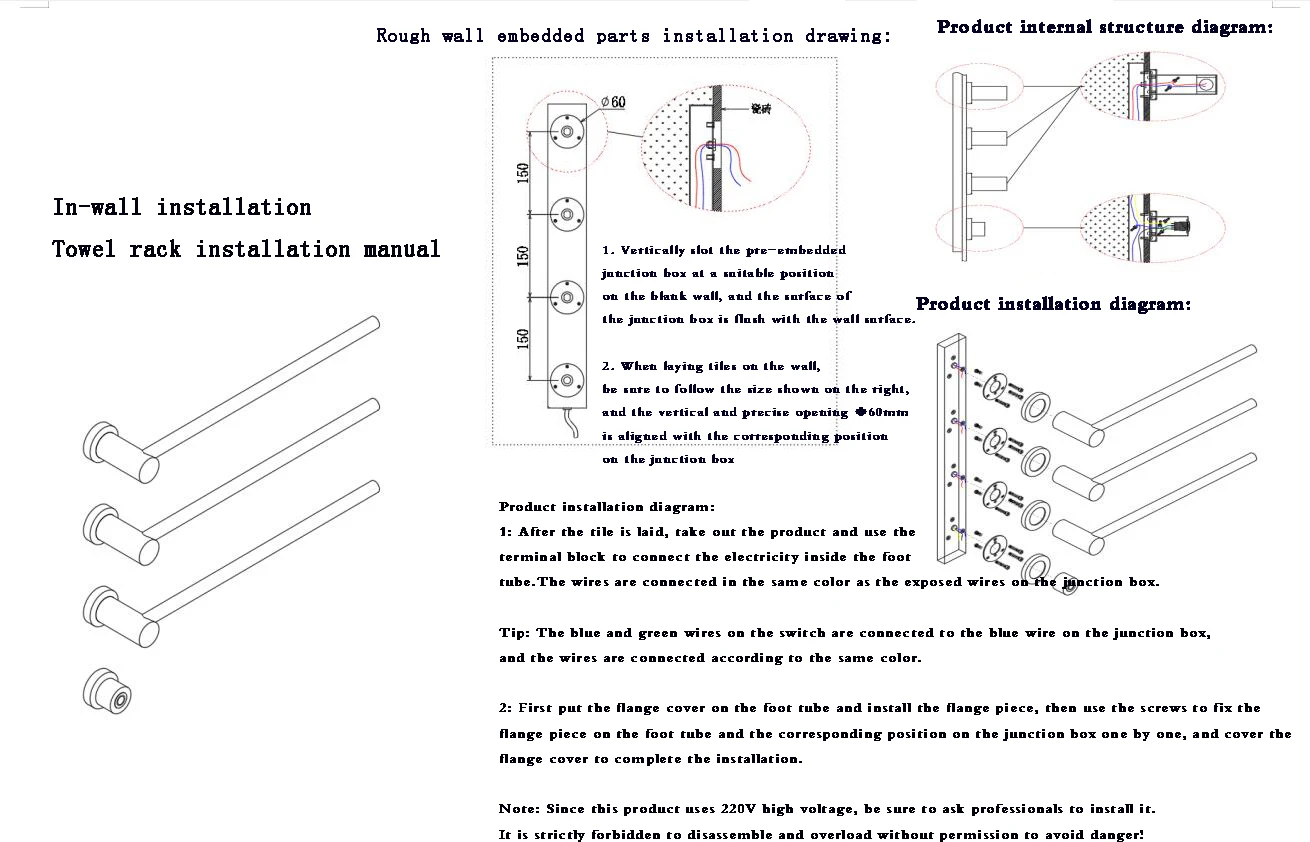

Rough wall embedded parts installation drawing:
1. Vertically slot the pre-embedded junction box at a suitable position on the blank wall, and the surface of the junction box is flush with the wall surface.
2. When laying tiles on the wall, be sure to follow the size shown on the right, and the vertical and precise opening Φ60mm is aligned with the corresponding position on the junction box

Product installation diagram:
1: After the tile is laid, take out the product and use the terminal block to connect the wire inside the foot tube with the exposed wire on the junction box according to the same color.

Tip: The blue and green wires on the switch are connected to the blue wire on the junction box, and the other wires are connected according to the same color.

2: First put the flange cover on the foot tube and install the flange piece, then use the screws to fix the flange piece on the foot tube and the corresponding position on the junction box one by one, and cover the flange cover to complete the installation.

Note: Since this product uses 220V high voltage, be sure to ask professionals to install it.
It is strictly forbidden to disassemble and overload without permission to avoid danger!
